Robust design High quality Hot sell DC 1000V 32A IP66/IP67 Solar Photovoltaic Disconnector Rotary Isolator Switch
All grid-connected generation systems (wind, PV, Hydro, CHP) must have G83 Grid-connection equipment, and must include a DC isolator on the DC side of the grid-tie inverter, and an AC-isolator on the AC side of the grid tie inverter.
Features:
1.Long arc chambers to help rapid arc suppression.
2.Double-break with silver rivets-superior performace, reliablity and long lasting.
3.Easy cable access via M20/25 knockouts.
4.Load-breaking up to 8 times rated current making it ideal for motor isolation.
5.Enclosure: Robust, brand-new PC, White.
6.Large padlockable red/yellow or grey/black handles.
7.Mechanical life: 20000.
8.Electrical life: 2000
9.Protection grade: IP66 / IP67
10.Thchincal Data (IEC60947-3 Rated operation DC21B)
Specifications:

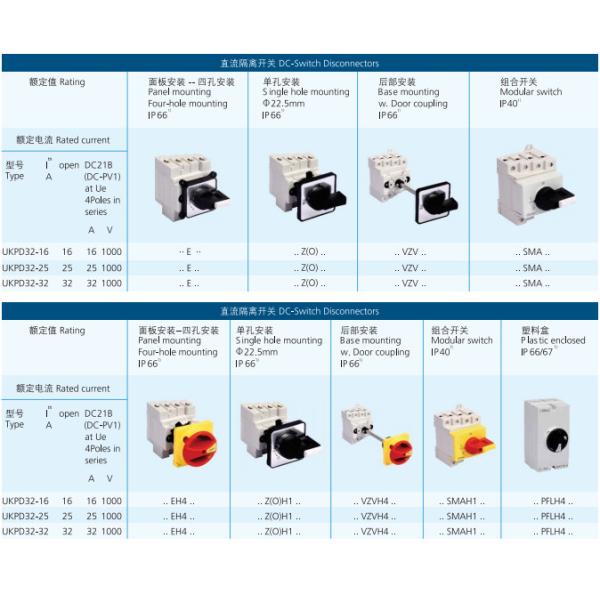

| Product | DC rotary isolator switch | Model Number | UKPD32 |
| Rated Voltage | DC 1000V | Polarized | No |
| Poles | 2 SIDES | Mounting Type | Wall |
| Rated Current | 16A,25A ,32A | IP Rating | IP66/IP67 |
| Switch Material | Nylon PA6 | Box | Polycarbonate |
| Limit short circuit capability | DC1500V 15KA | Breaking Capability | DC 1500V 15KA |
| Wire Size | 4.0-16.0mm | Working temperature | -5 - +65centigrades |
| Gland knockouts | M20 or M25 | Standard | IEC60947-3: 2005 |
Applications:
UKPD32 series DC solar switch disconnetors in plastic enclosure, are apllicable in 1-15KW residential or commercial photovoltaic system, independent with inverter.This model are designed to keep solar more safe, the higest voltage can be reached 1000V.To ensure its stability and long service.
Mouting:
This DC rotary isolator switch can be mounted vertically, horizongtally, sideways and remians its IP66/IP67 protection rating
Others (price,package and service)
1. The quoted price is always valid for 15 days due to the fluctuation of raw material cost.
Please feel free to contact us for the catalog or prices.
2. Please kindly inform us which items you are interested & the best price will be provided you upon receipt of your new inquiry asap.
3. Samples will be offered to you for our future cooperation. 1000V Solar PV Isolator
KRIPAL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Please kindly contact with us freely. High quality,reasonable price,best service is offered to you.
